Bômino (LED luminaire to integrate)

https://www.technilum.com/en/products/floodlights/

Bômino, our brand new LED luminaire perfectly integrates with the vast majority of our lighting poles and candelabras.

. Eco-designed from noble materials (glass, aluminum), with easy maintenance and repair
. Modular (wattage, photometrics), with the possibility of easily associating 2 to 6 Bômino
. Equipped with 8 ultra-efficient 5050 LEDs
. Zhaga compatible

It is widely customizable for all your functional and architectural projects.

Technical data

  • Integrated LED luminaire designed in glass, aluminum and stainless steel with a reduced number of components for increased repairability. Designed without glue and without cable gland, it is easily disassembled.

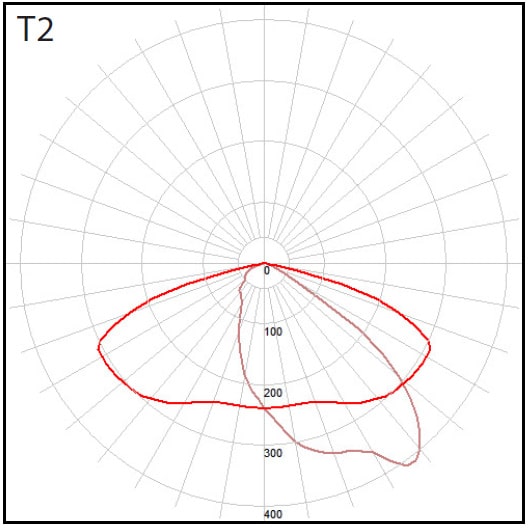

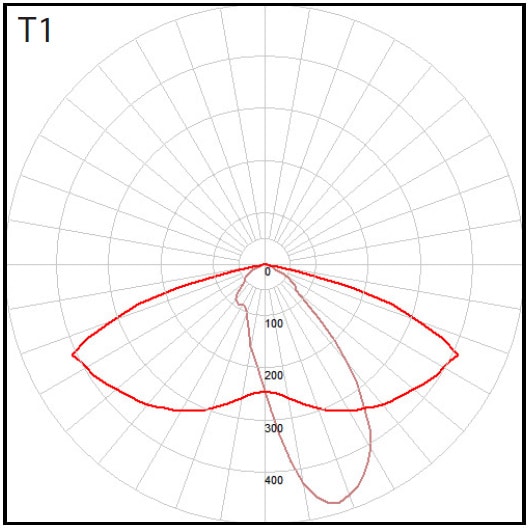

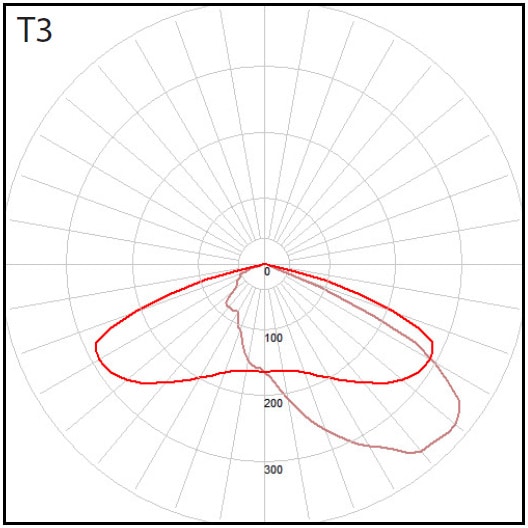

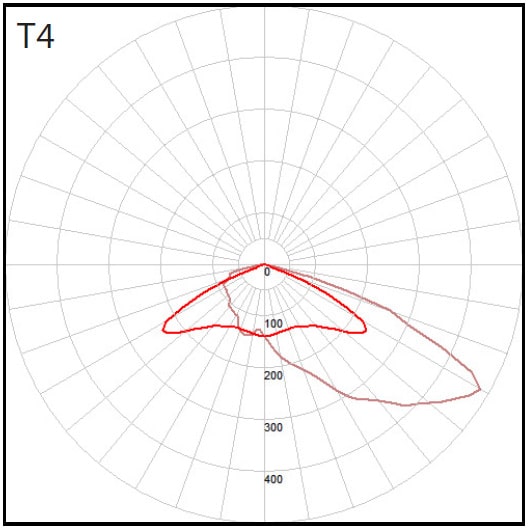

    Bômino consists of 8 high-performance LEDs with silicone optics for architectural, pedestrian and road lighting.

    Rear flow cutters and anti-glare film are available to modulate the lighting.
  • Dimensions: 90 x 140 x 65 mm
  • Protection: IP 66 / IK08
  • Class: I(II possible)
  • Power: 25 W
  • Outgoing flow: 3250 lm
  • Color temperature: 1800, 2200, 2700, 3000, 4000 °K
  • CRI: >70 (80, 90 sur demande)
  • ULOR: <1%
  • Lifespan (L80B10): >108 000
  • Driver: DALI-2, 0-10V, Programmation Horaire, Zhaga D4i, socket Zhaga / Nema (sur demande)
  • Number of LEDs: 8
  • Manseng Nano

    Aluminum lighting structure for functional and street lighting, with square profile (130 x 130 mm) integrating 4 technical groove for accessorization and mutualization.
    Height: from 4 to 12 m.

  • Manseng PM

    Aluminum lighting structure for functional and street lighting, with square profile (180 x 180 mm) integrating 2 technical groove for accessorization and mutualization.
    Height: from 4 to 12 m.

  • Aubin

    Aluminum modular lamp post for functional lighting with simple, double, triple or even sextuple head.
    Height: from 4 to 8 m.

  • Aubin (wall-mounted)

    Aubin Timeless wall-mounted lighting system, for exterior ambient and functional lighting.
    Outreach: 0.50m.

  • Aubin (bollard)

    Aluminum lighting bollard for ambient and decorative lighting
    Height: from 0,8 to 1,2m.

  • Mikado PM

    Monobloc aluminum lamp post with iconic trapeze-shape profile (210 x 180 x 140 mm) for functional lighting.
    Height: from 4 à 9 m.

  • Shiraz

    Functional aluminum lamp post, offering a refined contemporary shape, ideal for functional and roadway lighting. Monobloc, with rectangle shape profile (200 x 120 mm).
    Height: from 4 to 8 m.

  • Lamp

    Aluminum light pole with open-work cone, designed for ambient and decorative lighting.
    Height: from 3.5 to 4.5 m.

  • Zinfandel

    Aluminum lighting structure for functional lighting, equipped with technical grooves to facilitate accessorization.
    Height: from 4 to 8 m.

  • Zinfandel Nano

    Aluminum lighting structure for functional lighting, equipped with technical grooves to facilitate accessorization.
    Height: from 4 to 8 m.

  • Jeny

    LED lighting structure with triangular aluminum profile and 3 technical grooves allowing the easy set up of floodlights or accessories.
    Height: from 4 to 8 m.

  • Shiraz GM

    Functional aluminum lamp post, offering a refined contemporary shape, ideal for functional and roadway lighting. Monobloc, with rectangle shape profile (250 x 150 mm).
    Height: from 6 to 10 m.

  • Manseng Nano (bollard)

    Aluminum LED lighting bollard for ambient lighting, with square profile.
    Height: from 0.8 to 1.2 m.

  • Mikado GM

    Monobloc aluminum lamp post with iconic trapeze-shape profile (302 x 258 x 200 mm) for functional lighting.
    Height: from 9 to 14 m.

  • Mikado Nano

    Monobloc aluminum lamp post with iconic trapeze-shape profile (134 x 114 x 86 mm) for ambiant lighting.
    Height: from 3,5 à 5 m.

  • Shiraz K Nano

    Aluminum lamp post for functional and roadway lighting. Monobloc, with rectangle shape profile (158 x 95 mm). Equipped with technical grooves, it can be easily accessorizable.
    Height: from 3.5 to 5 m.

  • Shiraz Nano

    Functional aluminum lamp post, offering a refined contemporary shape, ideal for ambiant lighting. Monobloc, with rectangle shape profile (158 x 950 mm).
    Height: from 3.5 à 5 m.

  • Tannat

    Aluminum lamp post designed for functional and decorative ligthting. Rectangle shape profile (200 x 120 mm) with integrated technical grooves to facilitate accessorization.
    Height: from 4.5 to 8 m.

  • Lilio

    Light pole with fretted aluminum structure, which can integrate outdoor-rated LIFI technology.
    Height: from 3.5 to 8 m.

  • Mikado (wall-mounted)

    Timeless wall-mounted lighting system with iconic trapeze-shape aluminum profile, for exterior ambient lighting.
    Outreach: 1m.

  • Shiraz (wall-mounted)

    Wall-mounted aluminum lighting system, with contemporaneaous shape.
    Outreach: 1 m.

  • Zinfandel (wall-mounted)

    Wall-mounted aluminum lighting system.
    Outreach: 1 m.
